Execution Configuration

Every workflow can be configured separately and have its own configuration, to access the list of all configurations.

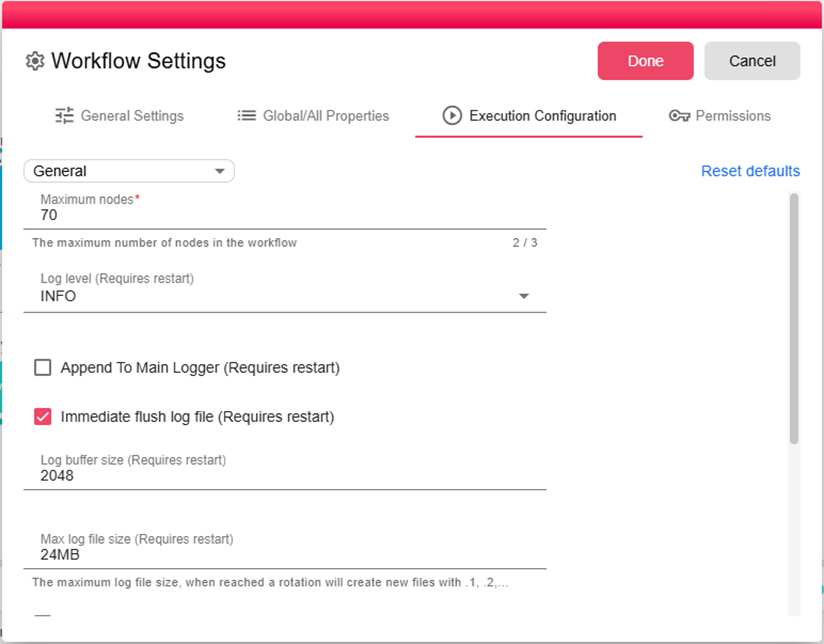

General​

In the general tab you can set general settings in the workflow execution

Maximum nodes​

The number of maximum nodes you can add to the workflow.

Maximum nodes​

Log level to print in the log tab in the bottom panel

Append To Main Logger​

By checking this the log of the execution will be Appended to main log (Applicatio.log)

Default date format​

Set the default date format that will be used in the workflow

Default timezone​

Set the default time zone that will be used in the workflow

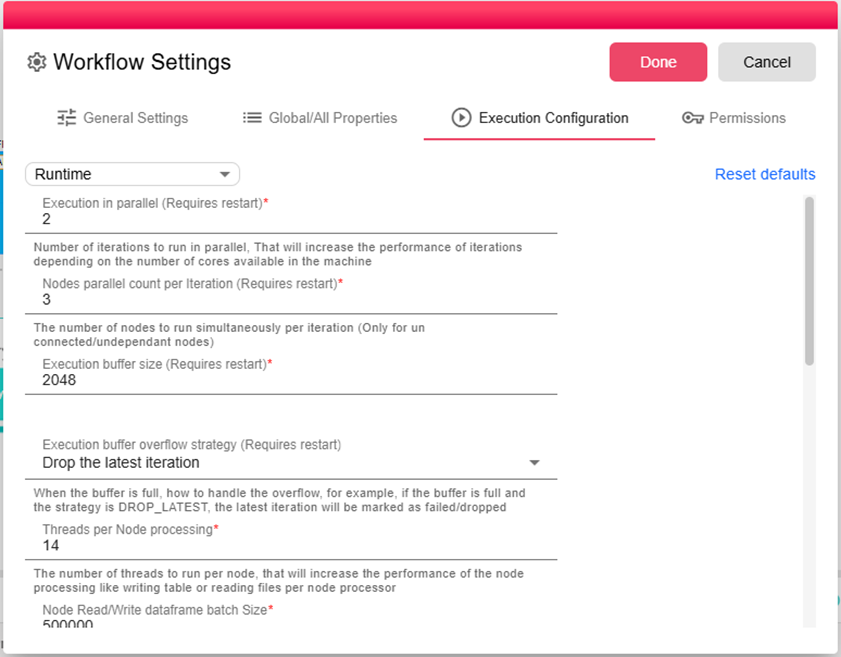

Runtime​

In the runtime tab you will find settings that are related to execution runtime

Execution in parallel​

Number of iterations to run in parallel, That will increase the performance of iterations depending on the number of cores available in the machine

Nodes Parallel count per iteration​

The number of nodes to run simultaneously per iteration (Only for un connected/undependant nodes)

Execution buffer overflow strategy​

When the buffer is full, how to handle the overflow, for example, if the buffer is full and the strategy is DROP_LATEST, the latest iteration will be marked as failed/dropped

Threads per node processing​

The number of threads to run per node, that will increase the performance of the node processing like writing table or reading files per node processor

Node Read/Write dataframe batch Size​

The max row size of a dataframe.

Trigger scheduler interval (duration)​

The interval that the trigger wakes up to check for new iterations.

Iteration Processing timeout (duration)​

The maximum time for iteration to run.

Stopping timeout (duration)​

The maximum time to let the execution stop.

Preview timeout (duration)​

The maximum time to let the node preview it's output.

Auto recover on failure​

Allow/Deny auto recover for execution on failure.

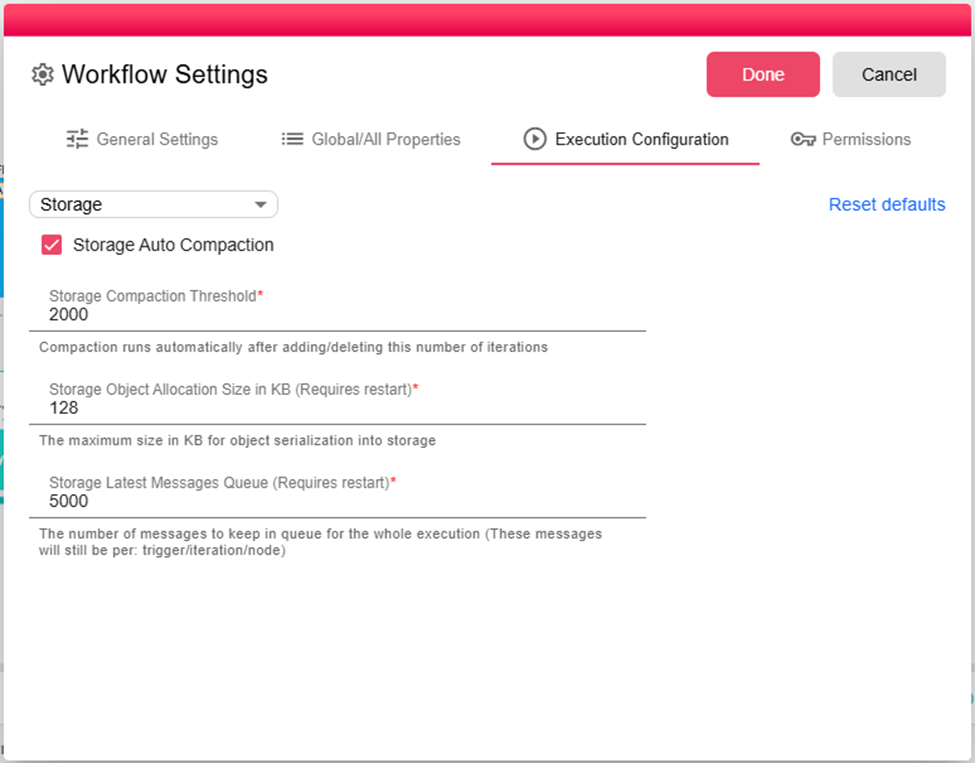

Storage​

Storage Compaction Threshold​

Compaction runs automatically after adding/deleting this number of iterations

Storage Object Allocation Size in KB​

The maximum size in KB for object serialization into storage

Storage Latest Messages Queue​

The number of messages to keep in queue for the whole execution (These messages will still be per: trigger/iteration/node)

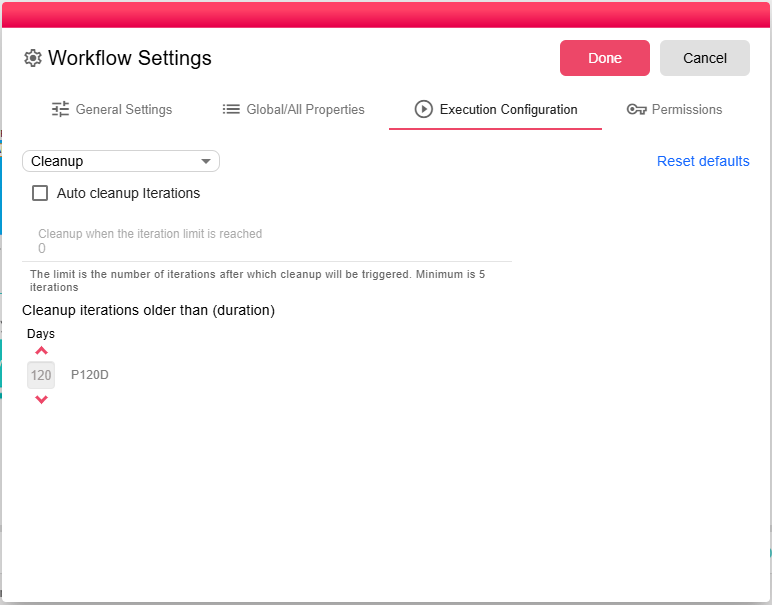

Cleanup​

Auto cleanup Iterations​

Enable/Disable auto cleanup for iterations

Cleanup after limit​

Cleanup iterations history after limit exceeds. 0 means no limit, the limit needs to be greater than 10

Cleanup iterations older than (duration)​

Cleanup iterations older than specific time.
